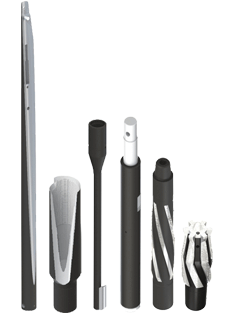

Whipstock with mechanical retrievable bottom-set anchor (KOYAIM2)
The whipstock with a retrievable mechanical double-die anchor is designed for casing exit through one or multiple casings. The whipstock system - comprising a starting mill (SM) and a watermelon mill (WM) - enables whipstock setting, casing exit and rathole drilling in a single trip. The system is mechanically set on bottom on a cement plug or bridge plug. The anchor can be retrieved from the wellbore if necessary.
Characteristics:
Standard size code of whipstock
KOYAIM2-139
KOYAIM2-140
KOYAIM2-168/178
Nominasl diameter of casing, mm
139
140/146
168/178
External diameter of whipstock, mm
112
115
135
External diameter of whipstock with mechanical anchor, mm
112
115
135
Length of whipstock, mm
2600
2600
2900
Length of hyudraulical anchor, mm
2600
2600
2900
Total length of the tool kit, mm
3755
3755
4055
Shearing force of transportation bolt, tn
9/11
9/11
9/11
