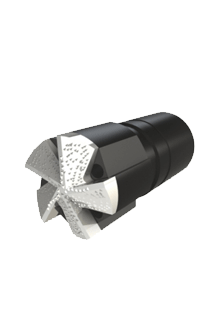

Insert junk mill (IJM)
Characteristics:
|
Designation |
OD, mm |
Length, mm |
Number of ports |
Thickness of working surface, mm |
Rotary speed, rpm, max |
Axial load, kN |
Thread* |
Weight, kg |
|
CJM-70 |
70 |
220 |
3 |
20 |
175 |
10…20 |
Z-44 (NC-16) |
5.0 |
|
CJM-85 |
85 |
220 |
3 |
20 |
175 |
10…20 |
Z-65 (NC-23) |
6.4 |
|
CJM-91 |
91 |
220 |
3 |
20 |
175 |
10…20 |
Z-65 (NC-23) |
8.6 |
|
CJM-92 |
92 |
220 |
3 |
20 |
175 |
10…20 |
Z-65 (NC-23) |
8.7 |
|
CJM-95 |
95 |
220 |
3 |
20 |
175 |
10…20 |
Z-65 (NC-23) |
8.9 |
|
CJM-102 |
102 |
250 |
3 |
20 |
175 |
10…20 |
Z-73 (NC-26) |
10.3 |
|
CJM-104 |
104 |
250 |
3 |
20 |
175 |
10…20 |
Z-73 (NC-26) |
11.5 |
|
CJM-110 |
110 |
250 |
3 |
20 |
175 |
10…22 |
Z-76 (2 7/8 Reg) |
12.7 |
|
CJM-112 |
112 |
250 |
3 |
20 |
175 |
10…22 |
Z-76 (2 7/8 Reg) |
13.1 |
|
CJM-114 |
114 |
250 |
3 |
20 |
175 |
10…22 |
Z-76 (2 7/8 Reg) |
13.4 |
|
CJM-115 |
115 |
250 |
3 |
20 |
150 |
10…22 |
Z-86 (NC-31) |
13.5 |
|
CJM-116 |
116 |
250 |
3 |
20 |
150 |
10…22 |
Z-86 (NC-31) |
13.8 |
|
CJM-117 |
117 |
250 |
3 |
20 |
150 |
10…22 |
Z-86 (NC-31) |
14.0 |
|
CJM-118 |
118 |
250 |
3 |
20 |
150 |
10…22 |
Z-86 (NC-31) |
14.2 |
|
CJM-119 |
119 |
250 |
3 |
20 |
150 |
10…22 |
Z-86 (NC-31) |
14.4 |
|
CJM-120 |
120 |
250 |
3 |
20 |
150 |
10…22 |
Z-86 (NC-31) |
14.6 |
|
CJM-121 |
121 |
250 |
3 |
20 |
150 |
10…22 |
Z-86 (NC-31) |
14.7 |
|
CJM-122 |
122 |
250 |
4 |
20 |
150 |
22...48 |
Z-86 (NC-31) |
14.9 |
|
CJM-124 |
124 |
250 |
4 |
20 |
150 |
22...48 |
Z-86 (NC-31) |
15.0 |
|
CJM-125 |
125 |
250 |
4 |
20 |
125 |
22...48 |
Z-86 (NC-31) |
15.4 |
|
CJM-127 |
127 |
250 |
4 |
20 |
125 |
22...48 |
Z-86 (NC-31) |
15.7 |
|
CJM-136 |
136 |
250 |
5 |
20 |
125 |
22...48 |
Z-86 (NC-31) |
18.2 |
|
CJM-140 |
140 |
270 |
5 |
20 |
125 |
22...48 |
Z-86 (NC-31) |
18.3 |
|
CJM-142 |
142 |
270 |
5 |
20 |
125 |
22...48 |
Z-86 (NC-31) |
18.4 |
|
CJM-146 |
146 |
270 |
5 |
20 |
125 |
22...48 |
Z-86 (NC-31) |
19.1 |
|
CJM-150 |
150 |
270 |
5 |
20 |
125 |
22...48 |
Z-88 (3 1/2 Reg) |
20.3 |
|
CJM-152 |
152 |
280 |
5 |
20 |
125 |
22...48 |
Z-102 (NC-38) |
21.8 |
|
CJM-155 |
155 |
280 |
5 |
20 |
125 |
22...48 |
Z-102 (NC-38) |
22.7 |
|
CJM-156 |
156 |
280 |
5 |
20 |
125 |
22...48 |
Z-102 (NC-38) |
23.0 |
|
CJM-190 |
190 |
300 |
4 |
20 |
125 |
22...48 |
Z-117 (4 1/2 Reg) |
78.6 |
|
CJM-210 |
210 |
340 |
6 |
25 |
125 |
22...48 |
Z-133 (NC-50) |
95.7 |
|
CJM-260 |
260 |
400 |
4 |
25 |
125 |
22...48 |
Z-133 (NC-50) |
98.5 |
|
CJM-270 |
270 |
400 |
4 |
25 |
125 |
22...48 |
Z-133 (NC-50) |
102.2 |
|
CJM-375 |
375 |
435 |
6 |
25 |
125 |
22...48 |
Z-147 (5 1/2 FH) |
159.3 |
