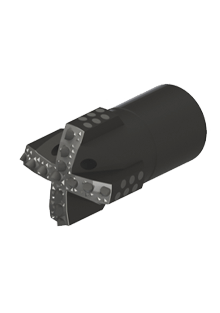

Insert mill bit
The insert mill bit 3TBM, equipped with tungsten carbide inserts, is designed for milling cement bridges and sand plugs, liner accessories, as well as for removing paraffin deposits and performing other workover operations in oil, gas, and exploration wells.
Characteristics:
|
Designation |
OD, mm |
Length, mm |
Number of ports |
Rotary speed, rpm, max |
Axial load, kN |
Thread* |
Weight, kg |
|
3IMB -83 |
83 |
220 |
4 |
175 |
5…20 |
Z-65 (NC-23) |
6.3 |
|
3IMB-85 |
85 |
220 |
4 |
175 |
5…20 |
Z-65 (NC-23) |
6.5 |
|
3IMB-90 |
90 |
220 |
4 |
175 |
5…20 |
Z-65 (NC-23) |
8.4 |
|
3IMB-95 |
95 |
220 |
4 |
175 |
5…20 |
Z-65 (NC-23) |
8.6 |
|
3IMB -100 |
100 |
250 |
4 |
175 |
5…20 |
Z-73 (NC-26) |
10.0 |
|
3IMB-102 |
102 |
250 |
4 |
175 |
5…20 |
Z-73 (NC-26) |
10.2 |
|
3IMB-104 |
104 |
250 |
4 |
175 |
5…20 |
Z-73 (NC-26) |
10.5 |
|
3IMB-112 |
112 |
250 |
4 |
125 |
5…20 |
Z-86 (NC-31) |
11.1 |
|
3IMB-114 |
114 |
250 |
4 |
125 |
5…20 |
Z-86 (NC-31) |
11.6 |
|
3IMB-115 |
115 |
250 |
4 |
125 |
5…20 |
Z-86 (NC-31) |
11.7 |
|
3IMB-118 |
118 |
250 |
4 |
125 |
5…20 |
Z-86 (NC-31) |
12.0 |
|
3IMB-120 |
120 |
250 |
4 |
125 |
5…48 |
Z-86 (NC-31) |
12.3 |
|
3IMB-138 |
138 |
250 |
5 |
125 |
5…48 |
Z-86 (NC-31) |
15.4 |
|
3IMB-141 |
141 |
250 |
5 |
125 |
5…48 |
Z-102 (NC-38) |
16.1 |
|
3IMB-152 |
152 |
250 |
5 |
125 |
5…48 |
Z-102 (NC-38) |
17.2 |
