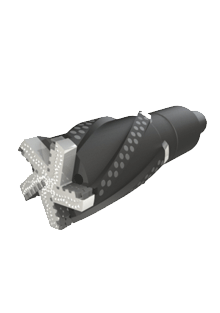

Spiral-blade downhole junk mill (SBDJM)
Characteristics:
|
Designation |
OD, mm |
Length, mm |
Thickness of working surface, mm |
Axial load, kN |
Thread* |
|
Z-65 (NC-23) |
|||||
|
SBDJM-107 |
107 |
430 |
25 |
10…20 |
Z-73 (NC-26) |
|
SBDJM-112 |
112 |
430 |
25 |
10…20 |
Z-73 (NC-26) |
|
SBDJM-121 |
121 |
450 |
25 |
10…20 |
Z-76 (2 7/8 Reg) |
|
SBDJM-123 |
123 |
450 |
25 |
10…20 |
Z-76 (2 7/8 Reg) |
|
SBDJM-124 |
124 |
450 |
25 |
10…20 |
Z-76 (2 7/8 Reg) |
|
SBDJM-125 |
125 |
450 |
25 |
10…20 |
Z-76 (2 7/8 Reg) |
|
SBDJM-126 |
126 |
450 |
25 |
10…20 |
Z-86 (NC-31) |
|
SBDJM-132 |
132 |
450 |
25 |
10…20 |
Z-86 (NC-31) |
|
SBDJM-138 |
138 |
450 |
25 |
10…20 |
Z-86 (NC-31) |
|
SBDJM-144 |
144 |
500 |
25 |
22…48 |
Z-102 (NC-38) |
|
SBDJM-145 |
145 |
500 |
25 |
22…48 |
Z-102 (NC-38) |
|
SBDJM-146 |
146 |
500 |
25 |
22…48 |
Z-102 (NC-38) |
|
SBDJM-153 |
153 |
500 |
25 |
22…48 |
Z-102 (NC-38) |
|
SBDJM-155 |
155 |
500 |
25 |
22…48 |
Z-102 (NC-38) |
|
SBDJM-156 |
156 |
500 |
25 |
22…48 |
Z-102 (NC-38) |
|
SBDJM-162 |
162 |
550 |
25 |
22…48 |
Z-102 (NC-38) |
|
SBDJM-186 |
186 |
550 |
25 |
22…48 |
Z-117 (4 1/2 Reg) |
|
SBDJM-213 |
213 |
600 |
25 |
22…48 |
Z-133 (NC-50) |
|
SBDJM-216 |
216 |
600 |
25 |
22…48 |
Z-133 (NC-50) |
