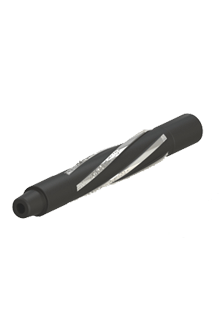

Watermelon mill
Characteristics:
Table 22.1 - Specifications of the watermelon mill**
|
Designation |
OD, mm |
Length, mm |
Cutting length, mm |
Axial load, kN |
Thread* |
|
WM-85 |
85 |
950 |
415 |
10…20 |
Z-65 (NC-23) |
|
WM-93 |
93 |
950 |
460 |
10…20 |
Z-65 (NC-23) |
|
WM-116 |
116 |
1000 |
540 |
22…48 |
Z-86 (NC-31) |
|
WM-121 |
121 |
1000 |
540 |
22…48 |
Z-86 (NC-31) |
|
WM-122 |
122 |
1000 |
540 |
22…48 |
Z-86 (NC-31) |
|
WM-123 |
123 |
1000 |
540 |
22…48 |
Z-86 (NC-31) |
|
WM-124 |
124 |
1000 |
540 |
22…48 |
Z-86 (NC-31) |
|
WM-125 |
125 |
1000 |
540 |
22…48 |
Z-86 (NC-31) |
|
WM-126 |
126 |
1000 |
540 |
22…48 |
Z-86 (NC-31) |
|
WM-140 |
140 |
1000 |
540 |
22…48 |
Z-86 (NC-31) |
|
WM-142 |
142 |
1000 |
540 |
22…48 |
Z-86 (NC-31) |
|
WM-143 |
143 |
1000 |
545 |
22…48 |
Z-102 (NC-38) |
|
WM-144 |
144 |
1000 |
550 |
22…48 |
Z-102 (NC-38) |
|
WM-145 |
145 |
1000 |
550 |
22…48 |
Z-102 (NC-38) |
|
WM-146 |
146 |
1000 |
550 |
22…48 |
Z-102 (NC-38) |
|
WM-147 |
147 |
1000 |
550 |
22…48 |
Z-102 (NC-38) |
|
WM-149 |
149 |
1000 |
600 |
22…48 |
Z-102 (NC-38) |
|
WM-152 |
152 |
1000 |
600 |
22…48 |
Z-102 (NC-38) |
|
WM-154 |
154 |
1000 |
600 |
22…48 |
Z-102 (NC-38) |
|
WM-156 |
156 |
1000 |
600 |
22…48 |
Z-102 (NC-38) |
|
WM-159 |
159 |
1000 |
600 |
22…48 |
Z-102 (NC-38) |
|
WM-218 |
218 |
1120 |
600 |
22…48 |
Z-133 (NC-50) |
|
WM-222 |
222 |
1120 |
600 |
22…48 |
Z-133 (NC-50) |
Table 22.1 - Specifications of the watermelon mill - Impact on metal**
|
Designation |
OD, mm |
Length, mm |
Cutting length, mm |
Axial load, kN |
Thread* |
|
WM-118 (Impact on metal) |
118 |
1500 |
450 |
22…48 |
Z-86 (NC-31), BOX/ Z-73 (NC-26), PIN |
|
WM-122 (Impact on metal) |
122 |
1500 |
480 |
22…48 |
Z-86 (NC-31), BOX/ Z-73 (NC-26), PIN |
|
WM-124 (Impact on metal) |
124 |
1500 |
250 |
22…48 |
Z-86 (NC-31), BOX/ Z-73 (NC-26), PIN |
|
WM-138 (Impact on metal) |
138 |
1500 |
480 |
22…48 |
Z-86 (NC-31), BOX/ Z-86 (NC-31), PIN |
|
WM-144 (Impact on metal) |
144 |
1500 |
300 |
22…48 |
Z-86 (NC-31), BOX/ Z-86 (NC-31), PIN |
*Connections per GOST 28487-2018, HLDS/HLIDS, HLST.
**Mills with alternative technical specifications can be manufactured upon customer request.
