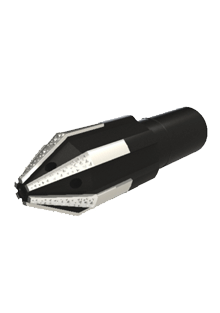

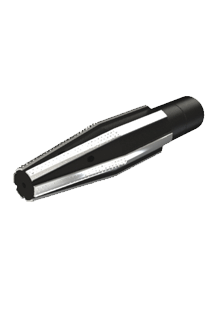

Taper String Mill
Characteristics:
|
Designation |
OD, mm |
Length, mm, max |
Rotary speed, rpm, max |
Axial load, kN |
Thread* |
Weight, kg |
|
350 |
8.7 |
|||||
|
TSM-93 |
93 |
430 |
175 |
10…20 |
Z-65 (NC-23) |
12.3 |
|
TSM-95 |
95 |
430 |
175 |
10…20 |
Z-65 (NC-23) |
12.5 |
|
TSM-105 |
102 |
450 |
175 |
10…20 |
Z-76 (2 7/8 Reg) |
19.3 |
|
TSM-114 |
114 |
450 |
125 |
10…20 |
Z-76 (2 7/8 Reg) |
20.4 |
|
TSM-115 |
115 |
450 |
125 |
10…20 |
Z-76 (2 7/8 Reg) |
20.5 |
|
TSM-117 |
117 |
450 |
125 |
10…20 |
Z-76 (2 7/8 Reg) |
20.8 |
|
TSM-118 |
118 |
450 |
125 |
10…20 |
Z-76 (2 7/8 Reg) |
20.9 |
|
TSM-120 |
120 |
450 |
125 |
10…20 |
Z-76 (2 7/8 Reg) |
21.0 |
|
TSM-122 |
122 |
450 |
125 |
22…48 |
Z-76 (2 7/8 Reg) |
21.3 |
|
TSM-124 |
124 |
450 |
125 |
22…48 |
Z-86 (NC-31) |
20.5 |
|
TSM-125 |
125 |
450 |
125 |
22…48 |
Z-86 (NC-31) |
21.8 |
|
TSM-127 |
127 |
450 |
125 |
22…48 |
Z-86 (NC-31) |
23.0 |
|
TSM-133 |
133 |
450 |
125 |
22…48 |
Z-86 (NC-31) |
25.8 |
|
TSM-136 |
136 |
450 |
125 |
22…48 |
Z-86 (NC-31) |
26.6 |
|
TSM-140 |
140 |
450 |
125 |
22…48 |
Z-86 (NC-31) |
27.8 |
|
TSM-143 |
143 |
450 |
125 |
22…48 |
Z-86 (NC-31) |
28.9 |
|
TSM-144 |
144 |
450 |
125 |
22…48 |
Z-86 (NC-31) |
29.0 |
|
TSM-146 |
146 |
450 |
125 |
22…48 |
Z-86 (NC-31) |
30.1 |
|
TSM-152 |
152 |
450 |
125 |
22…48 |
Z-102 (NC-38) |
32.9 |
|
TSM-154 |
154 |
450 |
125 |
22…48 |
Z-102 (NC-38) |
33.4 |
|
TSM-156 |
156 |
450 |
125 |
22…48 |
Z-102 (NC-38) |
33.7 |
