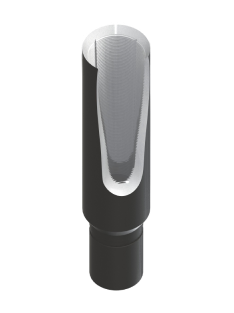

Threaded Die Collar

The threaded die collar is designed to engage tubular downhole components and retrieve them during fishing operations in oil, gas, and geological exploration wells. The fishing operation is performed by cutting threads onto the surface of the fish.

Leave a request

Characteristics:

Designation	OD, mm	Length, mm	Fishing thread size, mm		Load capacity, кN	Thread*
Designation	OD, mm	Length, mm	Max	Мin
57TCt-48/35	57	330	48	35	350	Z-45
57TCt-50/25	57	490	50	25	350	Z-45
59TCt-55/32	59	490	55	32	350	Z-45
83TCt-67/45	83	480	67	45	350	Z-65 (NC-23)
85TCt-62/43	85	480	62	43	350	Z-65 (NC-23)
90TCt-77/55	90	550	77	55	350	Z-66 (2 3/8 Reg)
92TCt-70/52	92	500	70	52	350	Z-73 (NC-26)
95TCt-82/60	95	550	82	60	400	Z-73 (NC-26)
102TCt-90/68	102	570	90	68	400	Z-73 (NC-26)
105TCt-90/60	105	670	90	60	400	Z-73 (NC-26)
108TCt-90/68	108	570	90	68	400	Z-86 (NC-31)
110TCt-94/72	110	550	94	72	400	Z-86 (NC-31)
114TCt-98/76	114	550	98	76	400	Z-86 (NC-31)
114TCt-80/55	114	600	80	55	400	Z-86 (NC-31)
118TCt-105/60	118	910	105	60	500	Z-86 (NC-31)
120TCt-100/78	120	560	100	78	500	Z-86 (NC-31)
120TCt-105/60	120	920	105	60	500	Z-86 (NC-31)
122TCt-105/60	122	750	105	60	500	Z-86 (NC-31)
124TCt-110/60	124	1000	110	60	500	Z-86 (NC-31)
124TCt-110/91	124	530	110	91	500	Z-86 (NC-31)
124TCt-114/69	124	950	114	69	500	Z-86 (NC-31)
125TCt-114/84	125	700	114	84	500	Z-86 (NC-31)
127TCt-110/78	127	570	110	78	500	Z-86 (NC-31)
140TCt-114/69	140	770	114	69	600	Z-102 (NC-38)
140TCt-124/94	140	730	124	94	600	Z-102 (NC-38)
140TCt-127/79	140	1000	127	79	600	Z-102 (NC-38)
150TCt-125/80	150	1000	125	80	600	Z-102 (NC-38)
156TCt-131/101	156	720	131	101	700	Z-102 (NC-38)
184TCt-164/120	184	980	164	120	1200	Z-133 (NC-50)
207TCt-179/131	207	1100	179	131	1500	Z-133 (NC-50)
210TCt-183/133	210	1090	183	133	1500	Z-133 (NC-50)
212TCt-197/149	212	1050	197	149	1500	Z-152 (6 5/8 Reg)
225TCt-195/168	225	800	195	168	1500	Z-171 (6 5/8 Reg)
241TCt-210/162	241	1100	210	162	1500	Z-171 (6 5/8 Reg)
254TCt-222/174	254	1100	222	174	1500	Z-171 (6 5/8 Reg)
291TCt-260/212	291	1160	260	212	1500	Z-171 (6 5/8 Reg)
