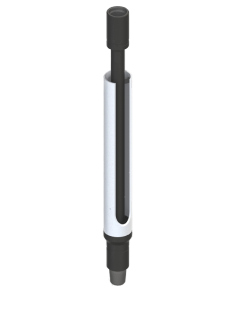

Sludge Catcher (SC)
The Junk Basket is designed to capture debris, fragmented metallic objects, and individual components from worn or damaged downhole tools—such as drill bits, mills, and other cutting equipment—as well as drill cuttings and sludge from the bottomhole area during drilling and cleanout operations.
The Junk Basket is avaliable in following configurations:
BOX-PIN - upper box thread and lower pin thread;
BOX-BOX - upper box thread and lower box thread;
PIN-BOX - upper pin thread and lower box thread;
PIN-PIN - upper pin thread and lower pin thread.
Characteristics:
Designation
SC-86
SC-89
SC-92
SC-94
SC-102
SC-108
SC-112
SC-114
SC-120
SC-127
SC-130
SC-133
SC-136
SC-140
SC-146
SC-165
SC-168
SC-178
SC-190
SC-194
SC-203
SC-240
SC-245
SC-268
SC-330
OD, mm
86,0
89,0
92,0
94,0
101,6
108,0
112,0
114,3
120,0
127,0
130,0
133,0
136,0
140,0
146,0
165,0
168,3
177,8
190,0
194,0
203,0
240,0
244,5
268,0
330,0
Bore dia, mm
25,0
25,0
25,0
25,0
32,0
32,0
32,0
32,0
32,0
32,0
32,0
32,0
32,0
32,0
36,0
36,0
50,0
50,0
70,0
70,0
70,0
82,0
82,0
82,0
82,0
Upper thread (box)*
Z-65
Z-66
Z-66
Z-66
Z-76
Z-76
Z-76
Z-76
Z-86
Z-86
Z-86
Z-86
Z-86
Z-86
Z-88
Z-88
Z-102
Z-102
Z-133
Z-133
Z-133
Z-147
Z-147
Z-147
Z-147
Lower thread (pin)*
Z-65
Z-66
Z-66
Z-66
Z-76
Z-76
Z-76
Z-76
Z-86
Z-86
Z-86
Z-86
Z-86
Z-86
Z-88
Z-88
Z-102
Z-102
Z-133
Z-133
Z-133
Z-147
Z-147
Z-147
Z-147
Basket depth, mm
600,0
800,0
800,0
800,0
800,0
800,0
800,0
800,0
800,0
800,0
800,0
800,0
800,0
800,0
800,0
800,0
800,0
800,0
800,0
800,0
800,0
800,0
800,0
800,0
800,0
