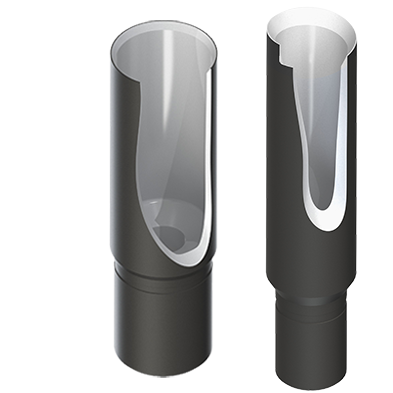

Plain Bore Die Collar (PBC, PBCt)

The plain bore die collar is designed to engage tubular downhole components and retrieve them during fishing operations in oil, gas, and geological exploration wells. The plain bore die collar is available in the following configurations: PBC -Plain bore die collar with сhamfer; PBCt - Plain bore die collar with cutlip guide.

Leave a request

Characteristics:

Designation	OD, mm	Length, mm	Fishing thread size, mm		Load capacity, кN	Thread*
Designation	OD, mm	Length, mm	Max	Мin
90PBCt-69/64	90	500	69	64	500	Z-65 (NC-23)
90PBCt-75/70	90	500	75	70	500	Z-65 (NC-23)
90PBCt-80/75	90	500	80	75	500	Z-66 (2 3/8 Reg)
96PBCt-81/76	95.5	500	81	76	500	Z-76 (2 7/8 Reg)
96PBCt-82/77	95.5	500	82	77	500	Z-76 (2 7/8 Reg)
102PBCt-84/79	102	500	84	79	500	Z-76 (2 7/8 Reg)
102PBCt-88/83	102	500	88	83	500	Z-76 (2 7/8 Reg)
102PBCt-91/86	102	600	91	86	500	Z-76 (2 7/8 Reg)
110PBCt-95/90	110	500	95	90	500	Z-86 (NC-31)
110PBCt-97/92	110	500	97	92	500	Z-86 (NC-31)
114PBCt-97/92	114	500	97	92	500	Z-86 (NC-31)
114PBCt-99/94	114	500	99	94	500	Z-86 (NC-31)
114PBCt-104/99	114	500	104	99	500	Z-86 (NC-31)
118PBCt-107/101	118	580	107	101	700	Z-86 (NC-31)
122PBCt-110/104	122	580	110	104	700	Z-86 (NC-31)
124PBCt-112/106	124	580	112	106	700	Z-102 (NC-38)
132PBCt-117/111	132	580	117	111	700	Z-102 (NC-38)
140PBCt-120/114	140	600	120	114	700	Z-102 (NC-38)
140PBCt-122/116	140	600	122	116	700	Z-102 (NC-38)
140PBCt-123/117	140	600	123	117	700	Z-102 (NC-38)
146PBCt-129/123	146	600	129	123	700	Z-102 (NC-38)
146PBCt-134/128	146	600	134	128	700	Z-102 (NC-38)
152PBCt-135/129	152	600	135	129	800	Z-102 (NC-38)
152PBCt-142/136	152	600	142	136	800	Z-102 (NC-38)
156PBCt-142/136	156	600	142	136	800	Z-102 (NC-38)
156PBCt-144/138	156	600	144	138	800	Z-102 (NC-38)
159PBCt-148/142	159	600	148	142	800	Z-102 (NC-38)
174PBCt-156/150	174	650	156	150	800	Z-133 (NC-50)
180PBCt-157/151	180	650	157	151	800	Z-133 (NC-50)
191PBCt-171/165	191	650	171	165	800	Z-133 (NC-50)
194PBCt-173/167	194	650	173	167	800	Z-133 (NC-50)
194PBCt-174/168	194	650	174	168	1200	Z-133 (NC-50)
207PBCt-180/174	207	680	180	174	1200	Z-133 (NC-50)
207PBCt-187/181	207	680	187	181	1200	Z-133 (NC-50)
210PBCt-196/190	210	680	196	190	1200	Z-133 (NC-50)
216PBCt-199/193	216	680	199	193	1200	Z-133 (NC-50)
219PBCt-205/199	219	700	205	199	1200	Z-133 (NC-50)
241PBCt-221/215	241	700	221	215	1200	Z-133 (NC-50)
266PBCt-247/241	266	700	247	241	1200	Z-133 (NC-50)
