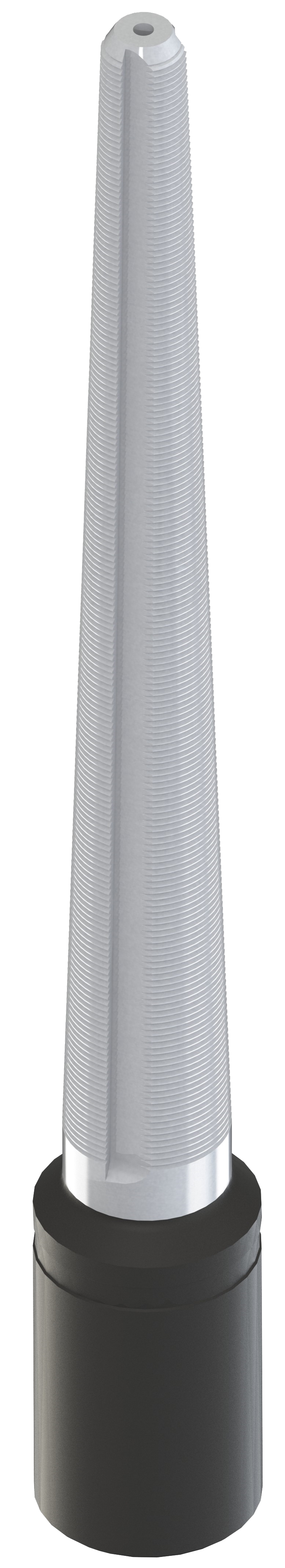

Threading taper tap (TTT)

The threading taper tap is used to retrieve tubular components by engaging their internal surface during fishing operations in oil, gas, and exploration wells. It is screwed into the fish to establish a secure connection for retrieval.

Leave a request

Characteristics:

Designation	OD, mm	Length, mm	Fishing thread size, mm		Load capacity, кN	Load capacity, кN	Thread*
Designation	OD, mm	Length, mm	Max	Мin	Load capacity, кN	Load capacity, кN	Thread*
57TTT-16/45	57	8	627	45	16	240	Z-45
57TTT-30/52	57	10	520	52	30	280	Z-45
65TTT-22/54	65	10	750	54	22	280	Z-50
80TTT-32/73	80	8	840	73	32	280	Z-65 (NC-23)
80TTT-20/45	80	10	630	45	20	280	Z-65 (NC-23)
86TTT-22/54	86.5	10	750	54	22	280	Z-73 (NC-26)
95TTT-32/73	95	10	880	73	32	600	Z-73 (NC-26)
98TTT-40/80	98.4	8	850	80	40	600	Z-76 (2 7/8 Reg)
98TTT-35/95	98.4	12	1147	95	35	600	Z-76 (2 7/8 Reg)
98TTT-46/80	98.4	12	750	80	46	600	Z-76 (2 7/8 Reg)
108TTT-32/73	108	10	900	73	32	600	Z-86 (NC-31)
108TTT-60/108	108	30	950	108	60	870	Z-86 (NC-31)
109TTT-25/64	109	8	860	64	25	600	Z-88 (3 1/2 Reg)
121TTT-58/94	121	14	820	94	58	760	Z-102 (NC-38)
121TTT-80/120	120	20	820	120	80	1120	Z-102 (NC-38)
124TTT-55/95	124	14	900	95	55	1120	Z-102 (NC-38)
124TTT-66/108	124	20	920	108	66	1120	Z-102 (NC-38)
124TTT-40/114	124	20	1050	114	40	1120	Z-102 (NC-38)
127TTT-75/120	127	25	1100	120	75	1120	Z-102 (NC-38)
133TTT-80/125	133	25	1150	125	80	1120	Z-108 (NC-40)
140TTT-90/135	140	30	1200	135	90	1210	Z-117 (4 1/2 Reg)
152TTT-100/145	152	40	1250	145	100	1240	Z-121 (4 1/2 FH)
168TTT-120/165	168	40	1350	165	120	1320	Z-133 (NC-50)
